WINDOWS SYSTEMS

Aluminum windows

Windows are the first and most essential portals into the infinity of space and a sophisticated business card for any room. In cooperation with Reynaers Aluminium Company, we create windows made of aluminum profiles, which will become a profitable and modern addition to the architecture of the premises. We offer a wide range of modifications for projects of any complexity and customer requirements.

Windows from KOMPAS-group are:

Individual and environmentally friendly solutions

Energy efficiency and safety

Possibility of automation

Own production and easy installation

Complete freedom of design

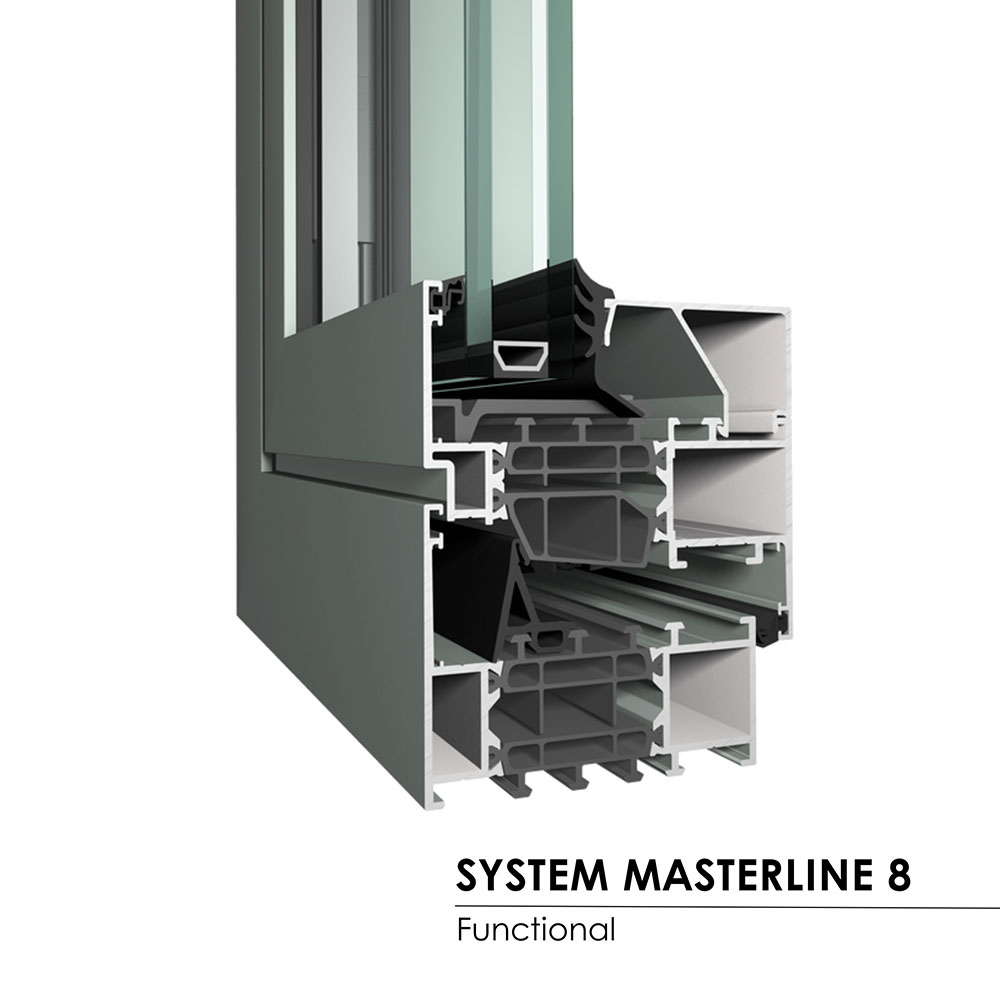

MASTERLINE 8 WINDOW SYSTEM

Masterline 8 is about the endless variety of design possibilities. This is the case when the price of aluminum windows fully justifies the sense. Masterline 8 windows perfectly combine all energy-saving requirements and exquisite design.

TECHNICAL CHARACTERISTICS

Min. visible window width: frame – 53 mm; vent – 37 mm (inward opening)
Min. visible door width: frame – 60 mm; vent – 67 mm (inward opening)
Window depth: frame – 77 mm; vent – 87 mm
Glass thickness: up to 72 mm

OPTIONS FOR THE EXTERIOR APPEARANCE

Functional. Strict geometry and restraint of the design, which means versatility.

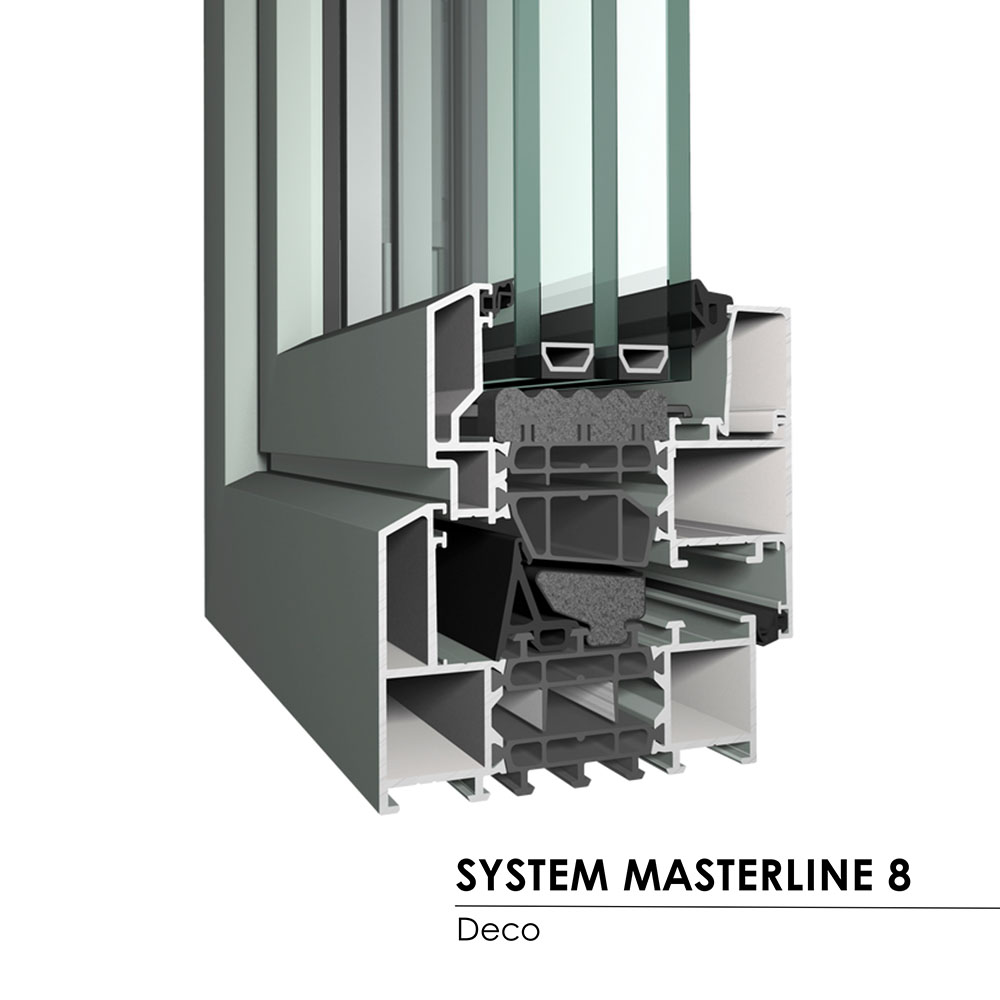

Deco. The beveled lines of the outer frame create the effect of reflection and shading. In some colors, it can mimic the look of a wooden frame.

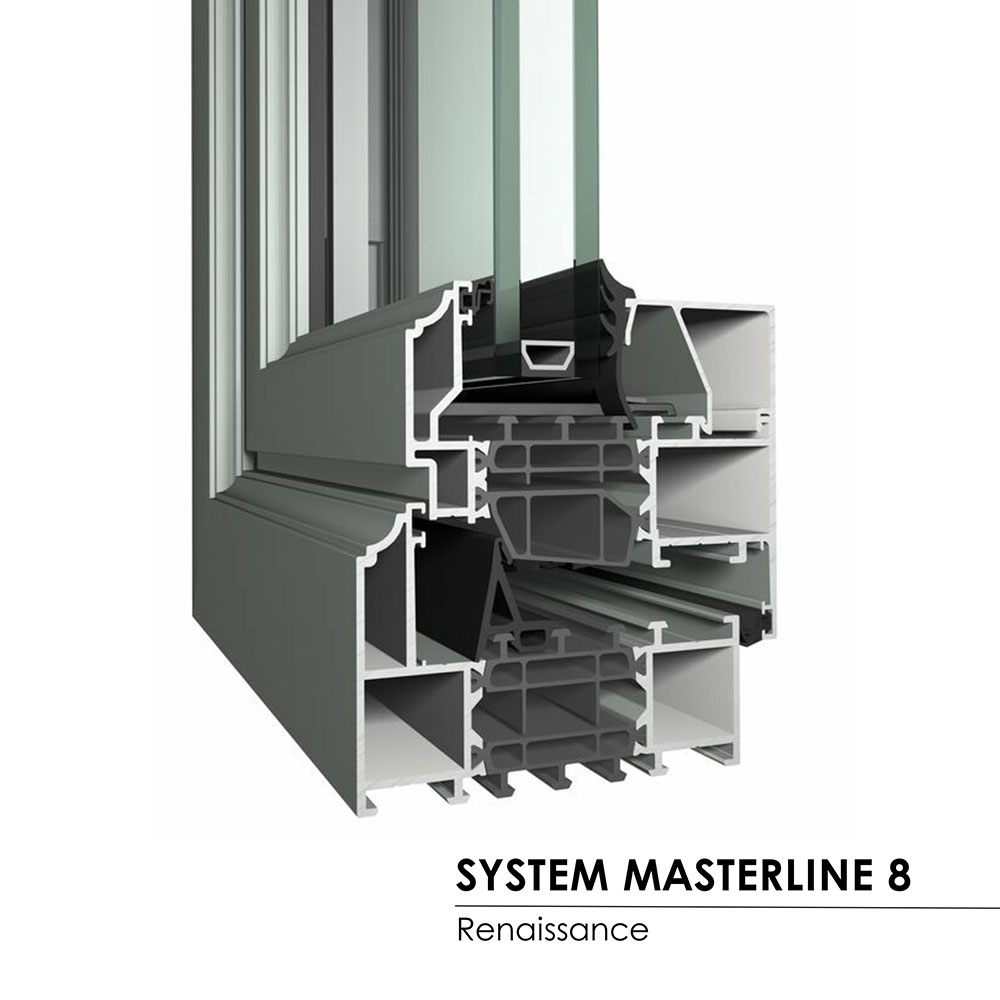

Renaissance. A luxurious curved profile with slightly protruding rounded shapes. The optimal solution for buildings with sophisticated architecture.

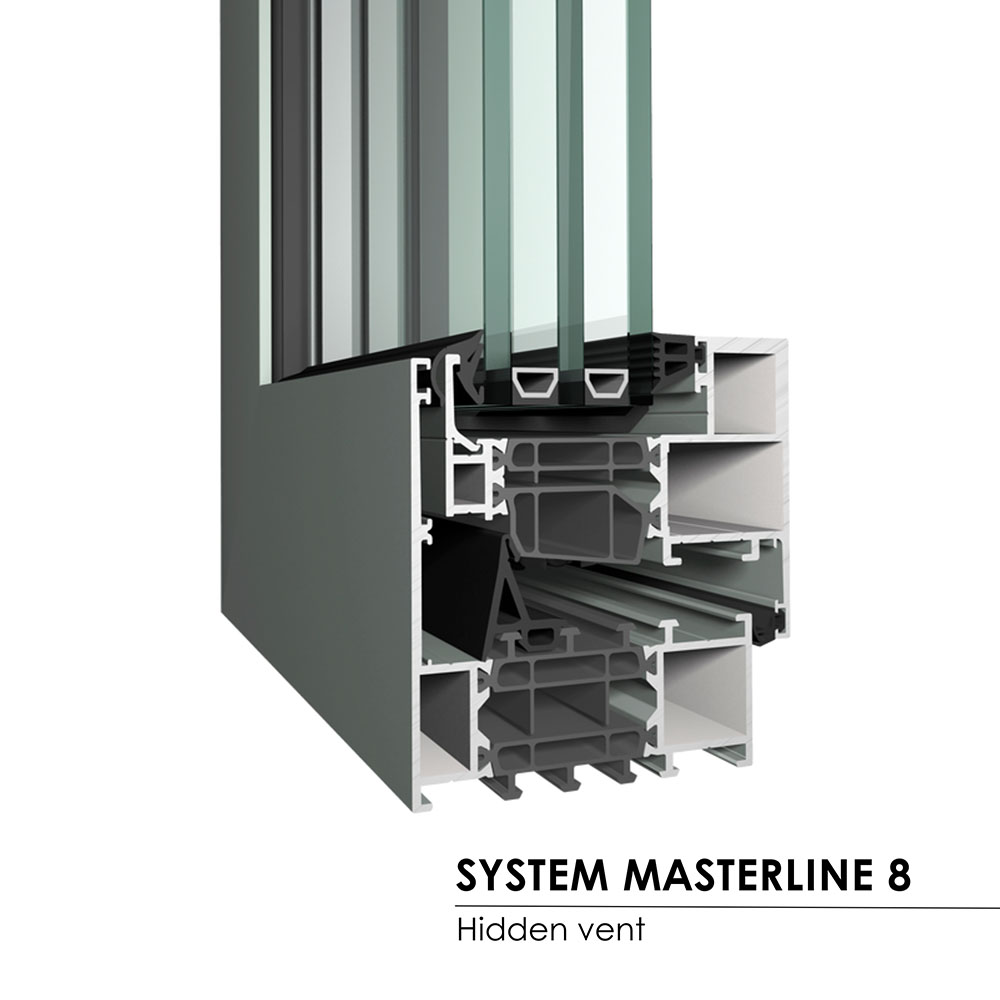

Hidden vent. A hidden vent that is not visible when closed for clean and aesthetic design.

UNDENIABLE ADVANTAGES

Extended overlap of the seal between the frame and the vent
Simplified adjustment of fittings
Durability and environmental friendliness of the materials used

PERFORMANCE CHARACTERISTICS:

Air tightness – Class 4 (600 Pa)
Acoustic insulation – 45 (-1; -4) dB
Water tightness – 1200 Pa
Wind load resistance – C4 (2000 Pa)
Burglar resistance – Class 3: RC 2 / WK and 2 RC 3 / WK 3
Thermal value – Uf down to 1,0 W/m²K (depending on the frame/vent combination and glass unit thickness)

SLIMLINE 38 WINDOW SYSTEM

SlimLine 38 is an aluminum window designed for those who appreciate the finest lines. The lowest profile visibility, which reveals wide views while maintaining powerful performance. The SL 38 window system has a “steel-like” appearance and will be a great addition to modern architecture.

TECHNICAL CHARACTERISTICS

Min. visible window width: frame – 33 mm; vent – 23 mm (inward opening)
Min. visible door width: frame – 33 mm; vent – 53 mm (inward opening)
Window depth: frame – 99 mm; vent – 76 mm
Glass thickness: up to 55 mm

OPTIONS FOR THE EXTERIOR APPEARANCE

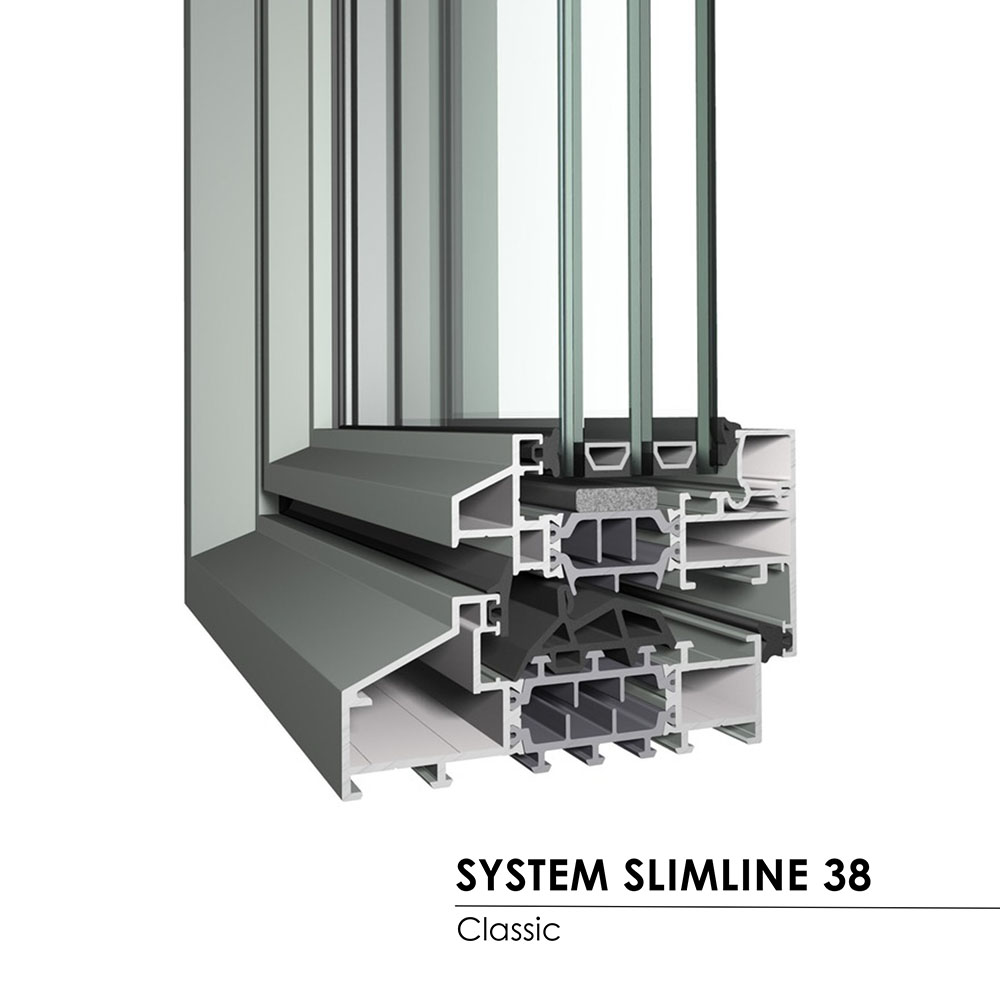

Classic. It has the appearance of a steel window with a slim, expressive profile and inclined surface.

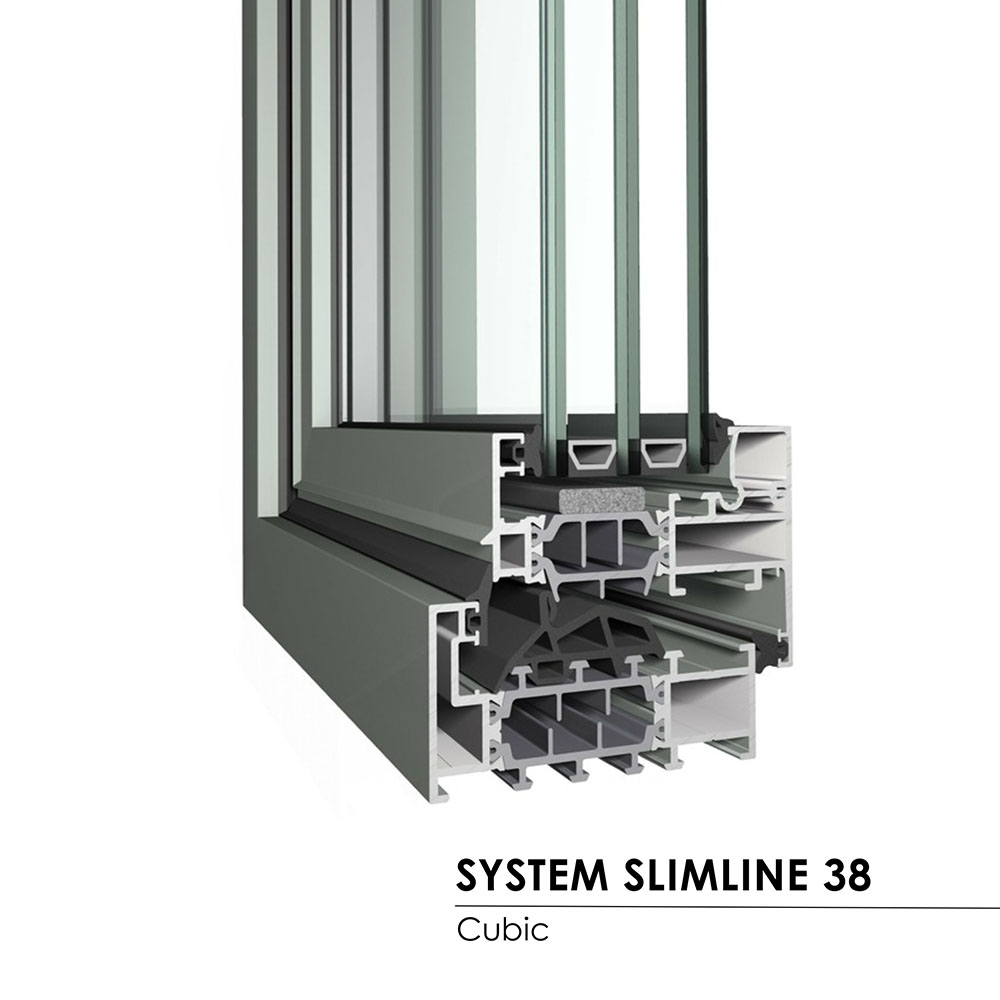

Cubic. It looks like a steel window but with a stepped surface of the outer profile.

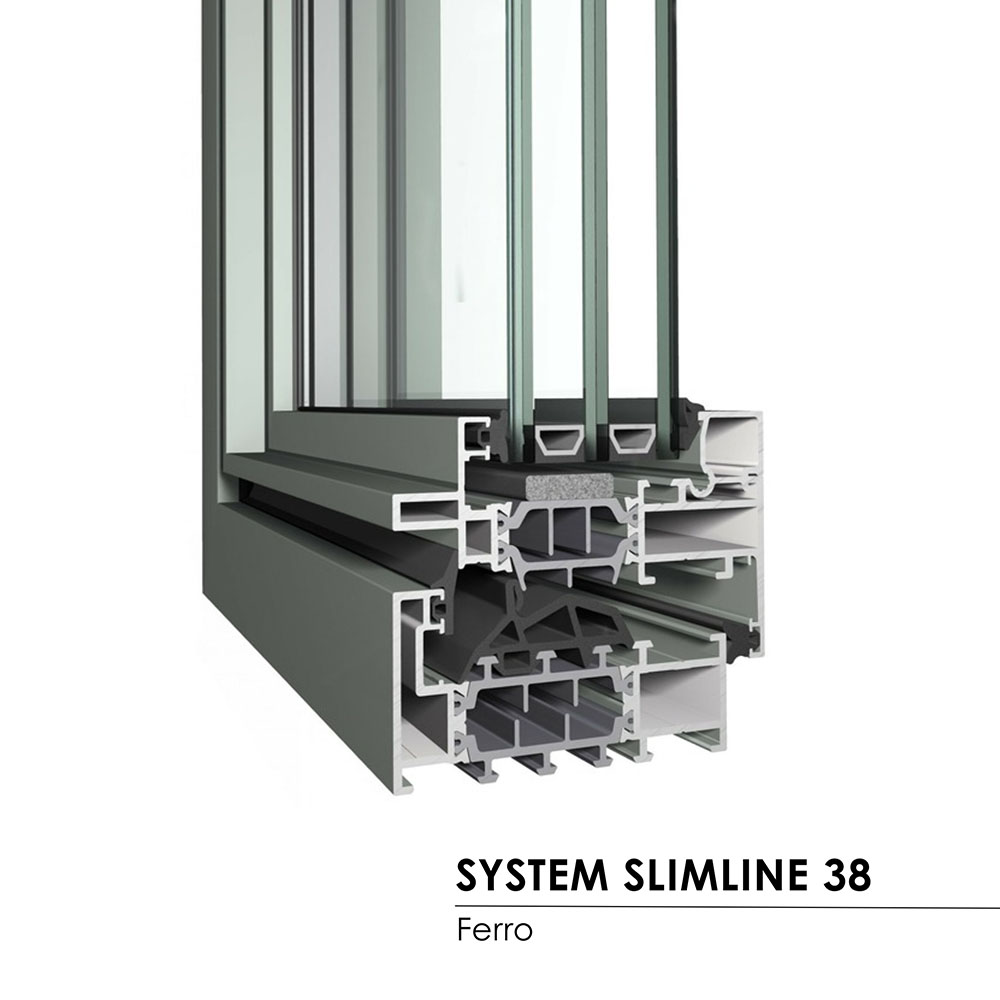

Ferro. Clear and straight lines of the external profile with shadow gaps.

UNDENIABLE ADVANTAGES

Improved thermal insulation characteristics
Possibility to integrate hidden drainage without plastic caps
Concealed hinges for clean external lines

PERFORMANCE CHARACTERISTICS:

Air tightness – Class 4 (up to 600 Pa)
Acoustic insulation – Rw (C; Ctr) = 45 (-2; -5) dB, depending on the type of glazing
Water tightness – up to 1200 Pa (Class E1200)
Wind load resistance –up to 2000 Pa (Class C5)
Burglar resistance – RC 2 and RC 3 (doors) (according to European standard ENV 1627-1630)
Thermal value – Uf depending on the combination of frame + vent and glass unit thickness:

MASTERLINE 10 WINDOW SYSTEM

Masterline 10 is the most sustainable solution for new-generation energy-passive buildings. It combines maximum access to daylight with high heat-saving performance. This is an ideal price-quality ratio in the line of aluminum windows with enhanced security indicators.

TECHNICAL CHARACTERISTICS

Depth vent – 107 mm
Depth frame – 97 mm
Max. weight of vent – 200 kg
Max. height of vent – up to 2800 mm; max. width of vent – up to 1200 mm
Glass thickness – up to 78 mm

OPTIONS FOR THE EXTERIOR APPEARANCE

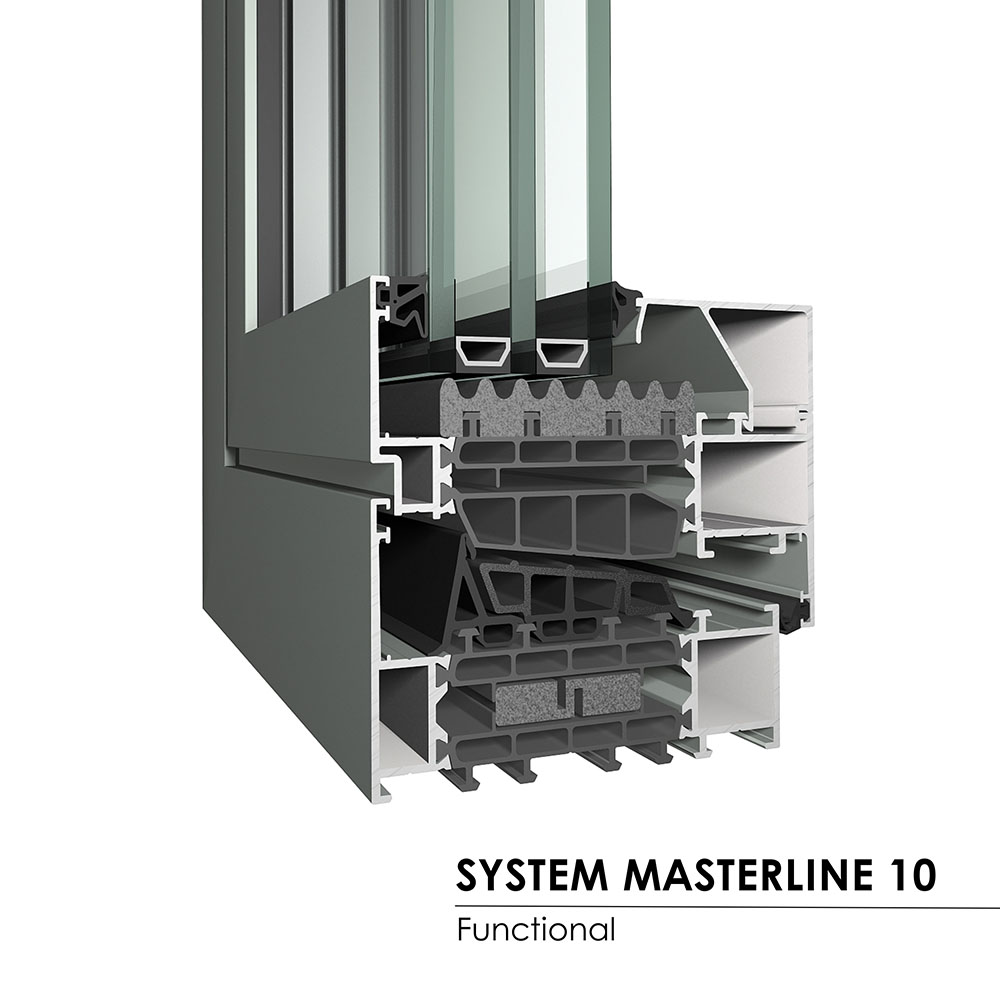

Functional. Strict geometry and restraint of the design, which means versatility.

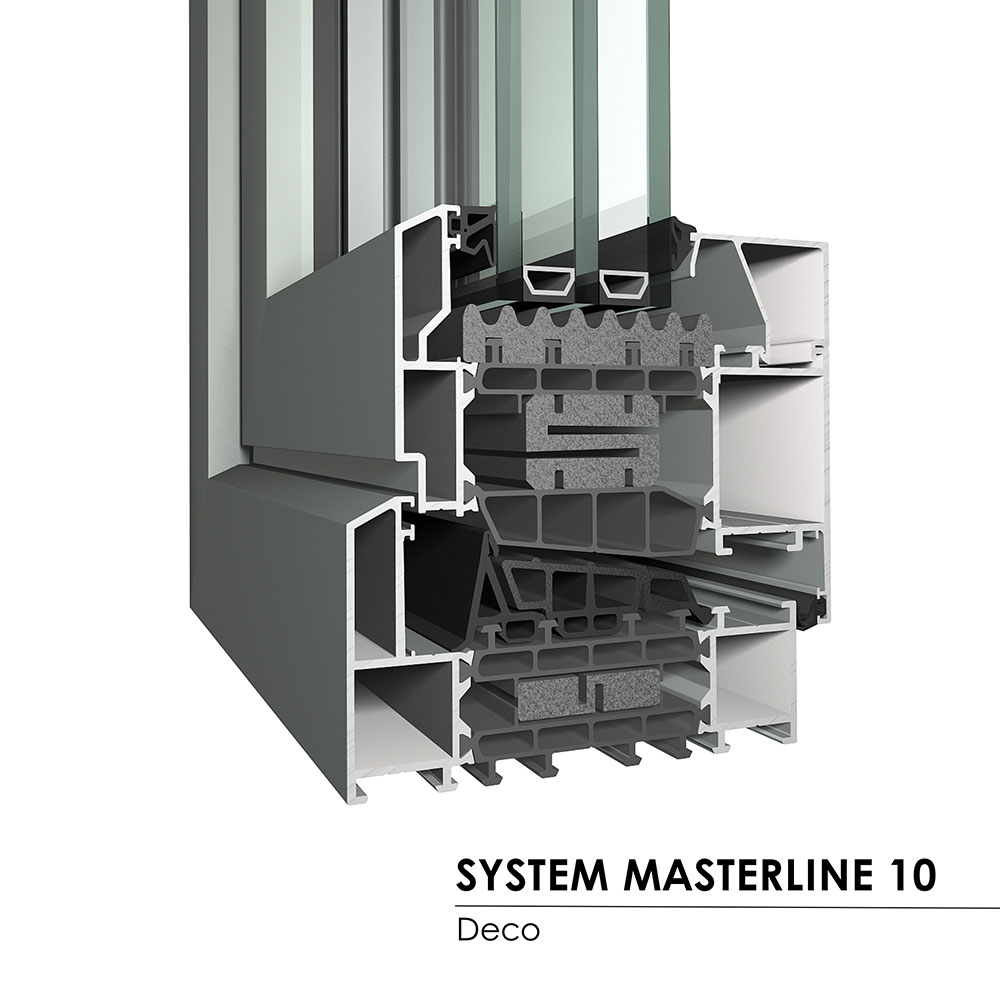

Deco. The beveled lines of the outer frame create the effect of reflection and shading. In some colors, it can mimic the look of a wooden frame.

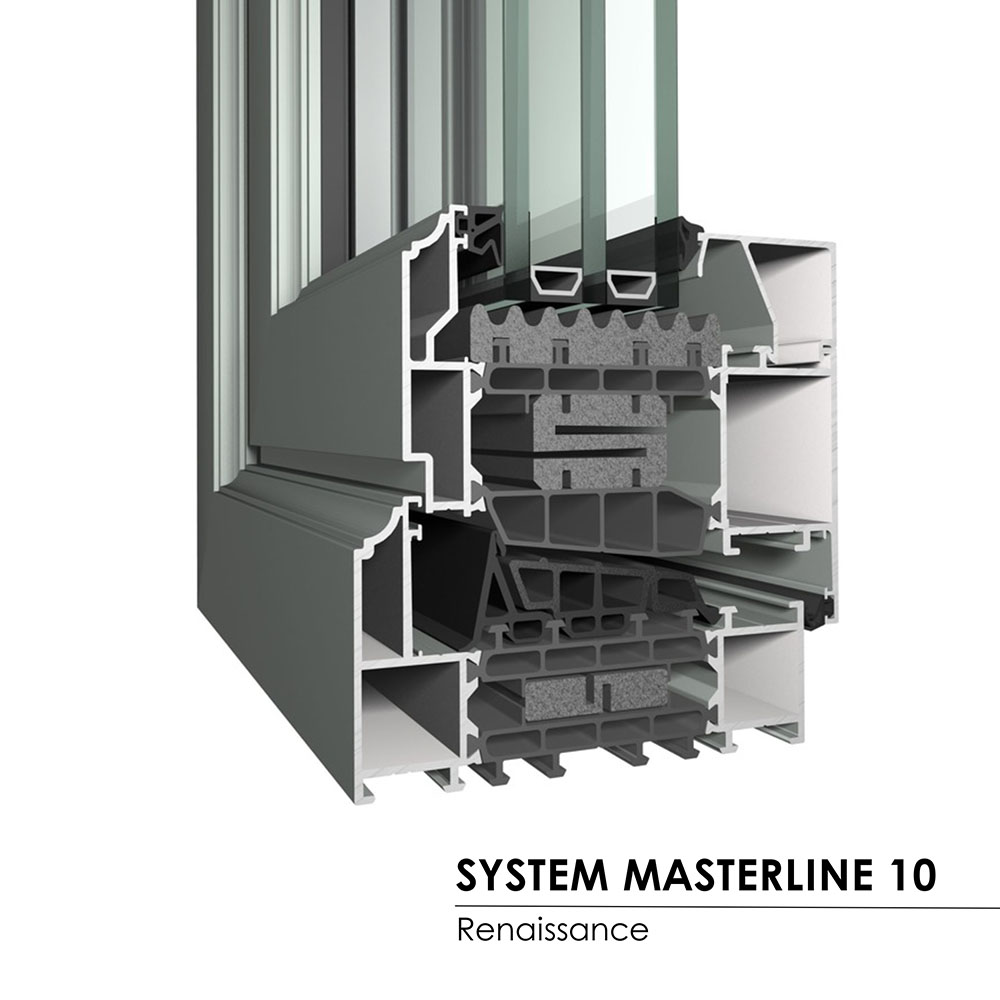

Renaissance. A luxurious curved profile with slightly protruding rounded shapes. The optimal solution for buildings with sophisticated architecture.

UNDENIABLE ADVANTAGES

Efficiency of production
High energy efficiency indicators
Possibility to integrate hidden drainage and hinges

PERFORMANCE CHARACTERISTICS:

Air tightness – Class 4 (600 Pa)
Acoustic insulation – Rw (C; Ctr) = 44 (-2; -4) dB, depending on the type of glazing
Water tightness – E900 (900 Pa)
Wind load resistance – C5 (2000 Pa)
Burglar resistance – RC2WK2RC3WK3
Thermal value – Uf – 0,78 W/m²K

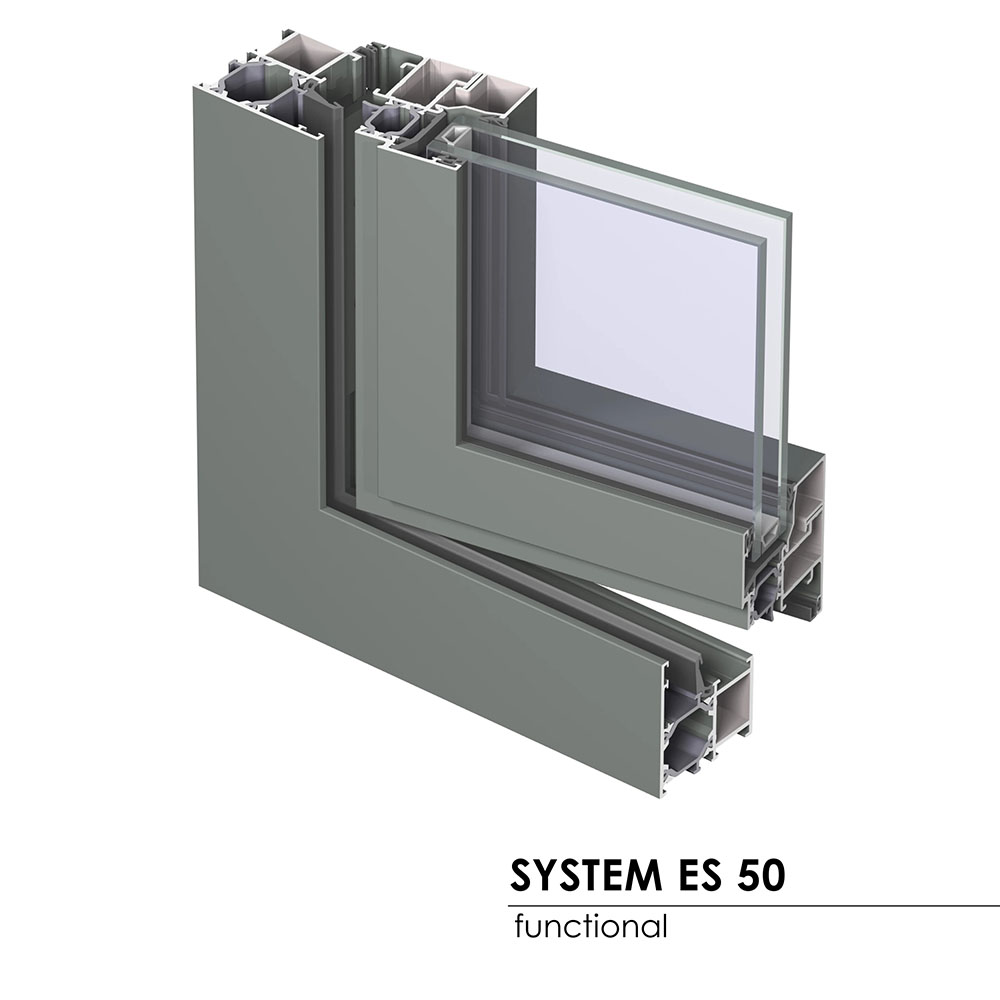

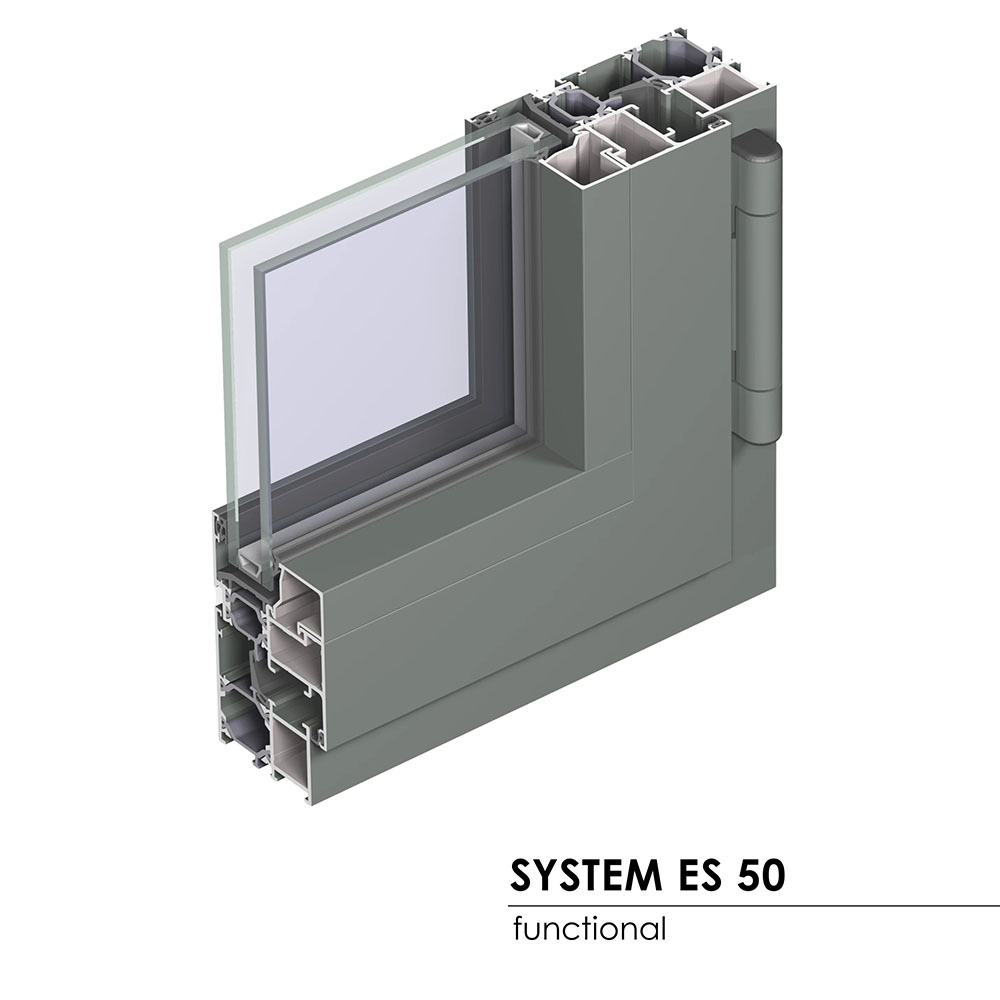

ECOSYSTEM 50 WINDOW SYSTEM

EcoSystem 50 is our answer to functional sophistication and rationality. It is a simple and perfect smart solution. Thanks to the additional, cleverly hidden hinges and the minimal depth of the built-in structure, the ES 50 aluminum window system becomes the undisputed flagship in the world of minimalism.

TECHNICAL CHARACTERISTICS

Min. height of element – 754 mm
Max. height of element – 2253 mm
Min. width of element – 554 mm
Max. width of element – 1653 mm
Min. height of vent – 700 mm

OPTIONS FOR THE EXTERIOR APPEARANCE

The ES 50 window system is presented in one functional variant that fully meets the needs of a niche architectural project.

UNDENIABLE ADVANTAGES

Balance of price, quality and functionality
Reduced built-in height for static and opening windows
Hidden hinges that do not spoil the appearance of the profile

PERFORMANCE CHARACTERISTICS:

Air tightness – Class 4 (600 Pa)
Acoustic insulation – Rw (C; Ctr) 38 (-1; -3) dB
Water tightness – Class 9A (600 Pa)
Wind load resistance – C4 (1600 Pa)
Thermal value – Uf 2,6 W/m²K

CONCEPTSYSTEM 77 WINDOW SYSTEM

Concept System 77 is a versatile, optimized aluminum system that will appeal to every architect. The key argument is its versatility and multidimensional design.

TECHNICAL CHARACTERISTICS

Min. height of element – 668 mm
Max. height of element – 2868 mm
Min. width of element – 518 mm
Max. width of element – 1268 mm
Total window depth – 68 mm
Rebate height – 25 mm

OPTIONS FOR THE EXTERIOR APPEARANCE

Functional. The standard universal design of an aluminum window will meet the needs of an architectural project.
Hidden Vent. A hidden opening that is not visible when closed – for clean and aesthetical design.
Softline Window. This name speaks for itself. Soft and smooth profile edges will enhance the aesthetic appearance of the frame.
Renaissance. A luxurious curved profile with slightly protruding rounded shapes. The optimal solution for buildings with sophisticated architecture.

UNDENIABLE ADVANTAGES

Compatibility with all levels of burglary resistance
This system is available in extreme security options, including bulletproof
Versatility in any construction project
High level of performance characteristics

PERFORMANCE CHARACTERISTICS:

Air tightness – Class 4 (600 Pa)
Acoustic insulation – Rw (C; Ctr) = 42 (-2; -4) dB
Water tightness – E900 (900 Pa)
Wind load resistance – C5 (2000 Pa)
Burglar resistance – RC2RC3WK2WK3PAS 24
Thermal value – Uf – 1,8 W/m²K
Fire resistance - EI₁ 30 EI₂ 30 EI₂ 60
Bulletproof - FB4 FSG Kalashnikov

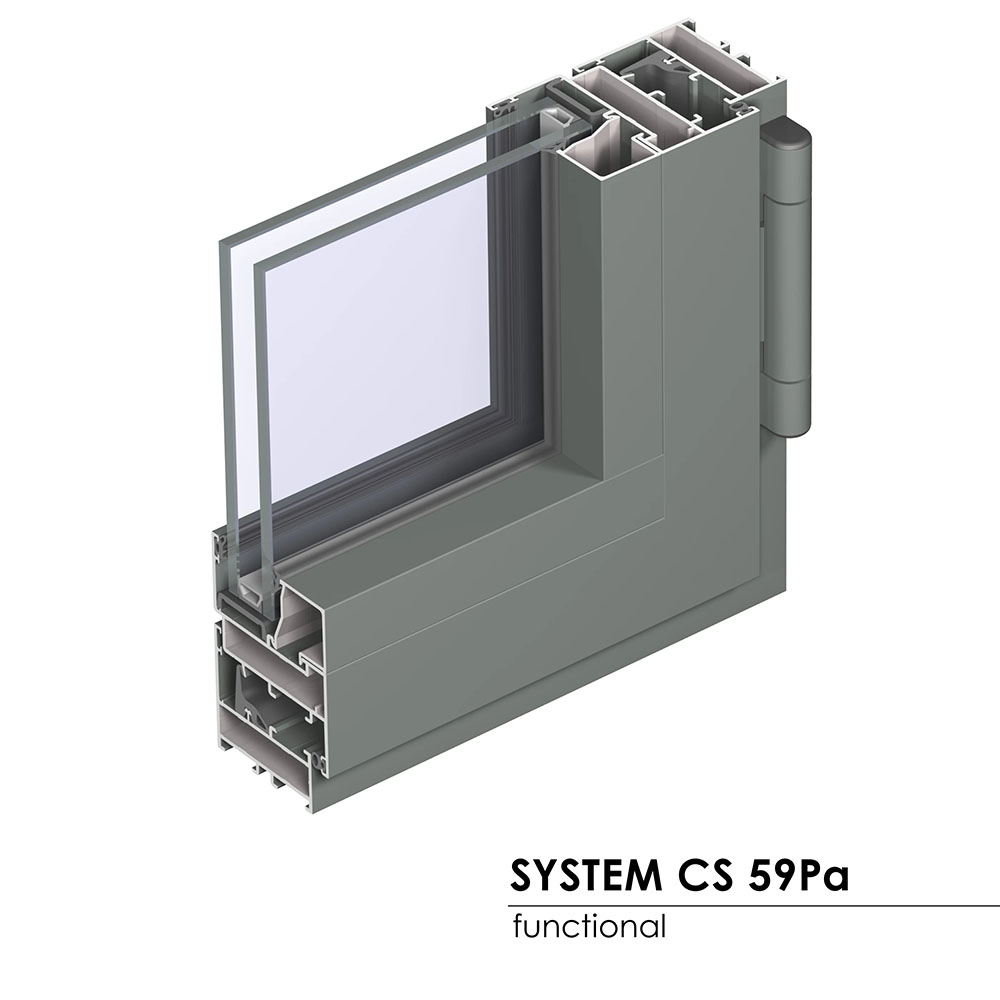

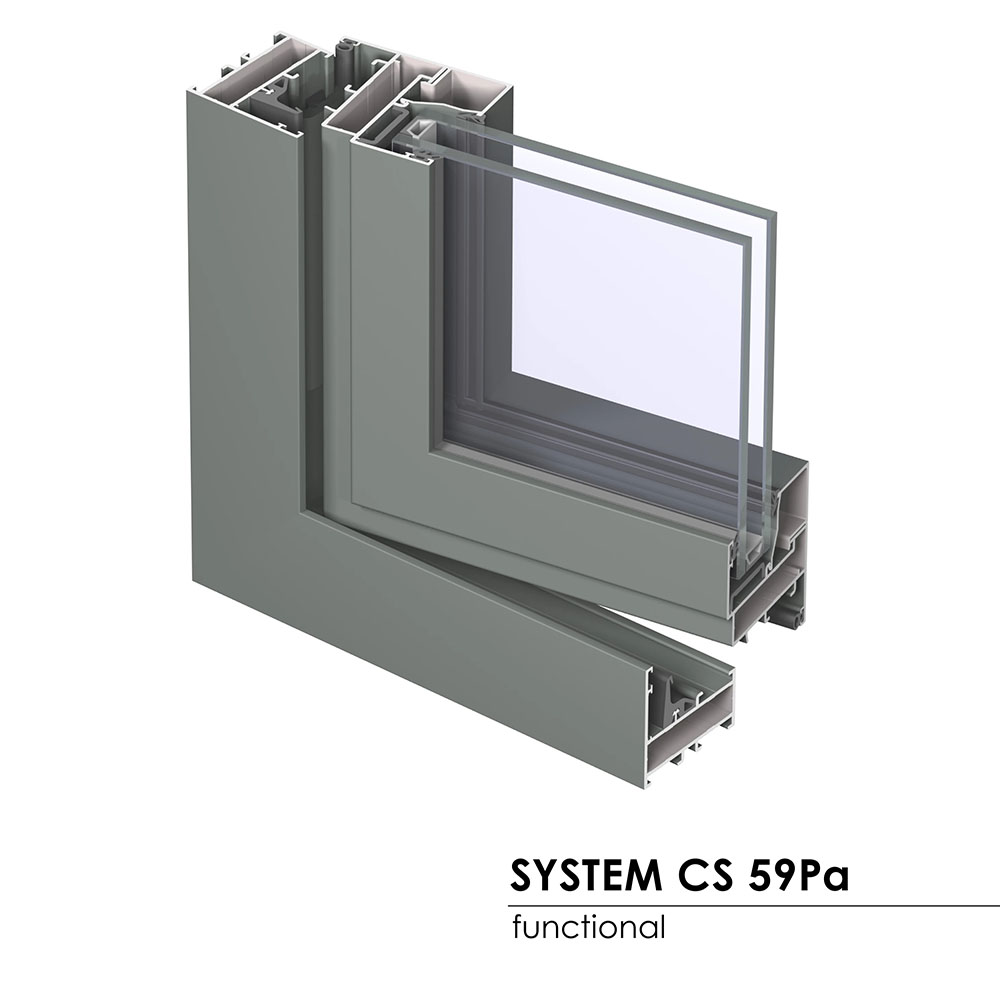

CONCEPTSYSTEM 59 PA WINDOW SYSTEM

Concept System 59 Pa is a set of aluminum window system profiles for “cold” rooms without heating or for interior use. It is a non-insulated but reliable solution for warm climates.

TECHNICAL CHARACTERISTICS

Min. height of element – 538 mm
Max. height of element – 2538 mm
Min. width of element – 538 mm
Max. width of element – 1438 mm
Total window depth – 50 mm

OPTIONS FOR THE EXTERIOR APPEARANCE

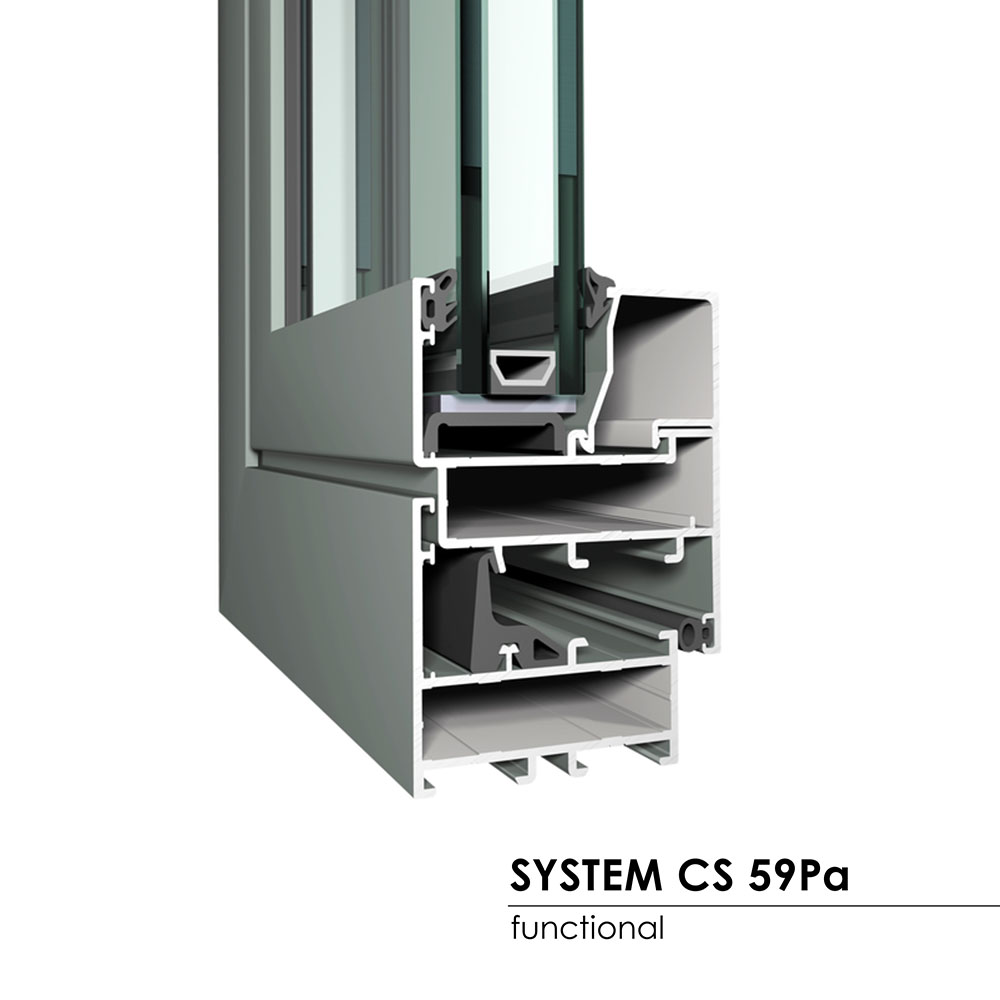

The CS 59 Pa window system is presented in the universal Functional variant, satisfying any construction project focused on a "cold" room.

UNDENIABLE ADVANTAGES

Unique solution for hot climates without additional insulation
Reduced visible width for fixed frames and open windows
Ideal ratio of price, quality, and functionality
Possibility to integrate hidden drainage

PERFORMANCE CHARACTERISTICS:

Air tightness – Class 4 (600 Pa)
Acoustic insulation – Rw (C; Ctr) 44 (-2; -4) dB
Water tightness – Class E750 (750 Pa)
Wind load resistance – C5 (2000 Pa)
Burglar resistance – WK2
